HTC HRT-90 Adjustable Folding Roller Conveyor Table 66″ x 24″ 500lb

Description

Product Overview

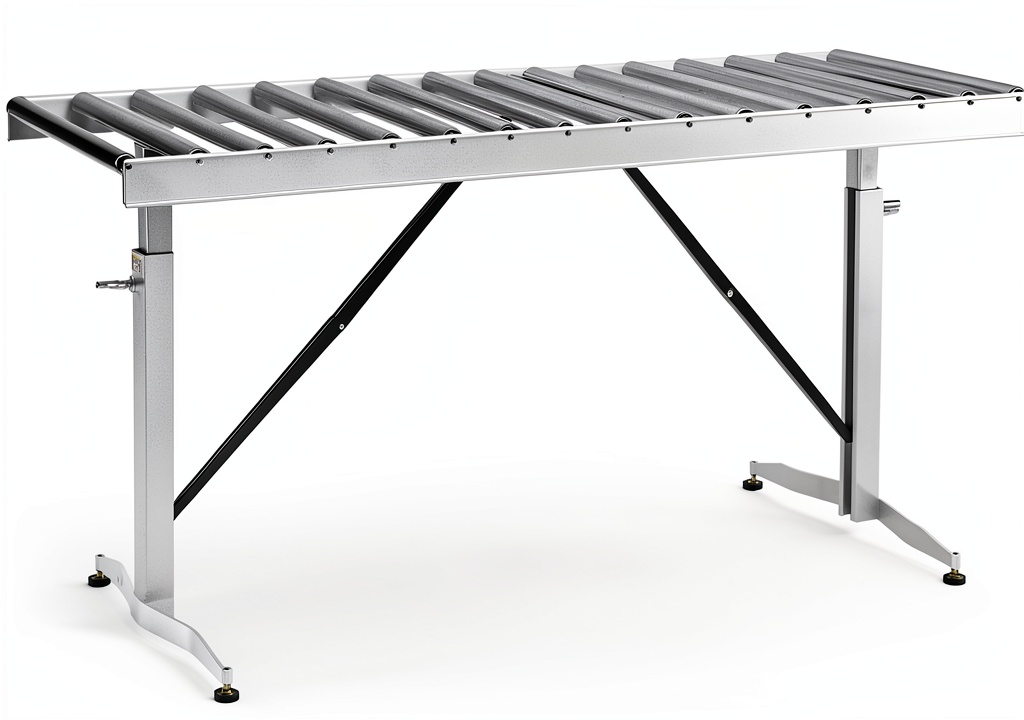

The HTC HRT-90 Adjustable Folding Roller Conveyor Table is engineered to meet the demanding needs of modern material handling environments. Constructed from high‑grade steel and finished in a clean white coating, the frame offers exceptional rigidity while resisting corrosion and wear. The table’s generous 66‑inch length and 24‑inch width provide ample workspace for a variety of parts, tools, and components, making it a versatile platform for both small‑scale workshops and larger industrial settings.

At the heart of the HRT-90 are 17 precision‑machined ball bearing rollers that deliver smooth, low‑friction motion for items ranging from lightweight electronics to heavier mechanical assemblies. Each roller is designed to handle a maximum load of 30 lb, collectively supporting up to 500 lb without compromising stability. The rollers are spaced evenly across the surface to ensure consistent movement and reduce the risk of product damage during transport.

One of the standout features of this conveyor table is its folding mechanism. When not in use, the table can be collapsed into a compact footprint, allowing for easy storage in tight spaces or transport to different job sites. The folding hinges are reinforced with lock‑pins that secure the table in both the open and closed positions, guaranteeing safety and durability throughout repeated cycles of deployment and stowage.

Additional specifications include a total product weight of 75 pounds, a clear load capacity of 500 lb, and a robust 17‑ball bearing roller system that operates silently, reducing workplace noise levels. The unit arrives fully assembled, requiring only minimal setup such as positioning the rollers and confirming the folding locks. No batteries or external power sources are needed, making the HRT-90 an energy‑efficient solution for continuous operation.

Usage

Designed for flexibility, the HRT-90 excels in a wide range of applications. In a typical workshop, technicians can use the conveyor to streamline the flow of parts between workstations, reducing manual handling time and minimizing ergonomic strain. The smooth roller action is especially beneficial for delicate components that require gentle transport, such as printed circuit boards, precision machined parts, or fragile glass items.

In larger manufacturing facilities, the table can serve as a temporary assembly line segment, allowing operators to move sub‑assemblies quickly from one station to the next. Its 500 lb capacity ensures that even heavier items, such as motor housings or bulk material pallets, can be conveyed safely. The white finish not only provides a clean aesthetic but also makes it easier to spot any debris or spills, supporting a safer work environment.

For field service technicians, the folding capability turns the HRT-90 into a portable workstation that can be set up on site and folded away after the job is complete. Whether you are performing equipment maintenance, conducting quality inspections, or assembling components in a remote location, the table’s lightweight yet sturdy construction makes it an ideal companion for on‑the‑go operations.

Why Choose Us

When selecting a material handling solution, reliability and longevity are paramount. HTC has a long history of producing industrial equipment that meets rigorous standards, and the HRT-90 is no exception. Each component is manufactured under strict quality‑control procedures, and the final product undergoes comprehensive testing to verify load capacity, roller performance, and folding durability. This commitment to quality ensures that the conveyor table will perform consistently day after day, even in high‑throughput environments.

Beyond the robust construction, HTC provides a comprehensive warranty and responsive after‑sales support. Should any issues arise, our technical team is available to troubleshoot, supply replacement parts, or guide you through maintenance procedures. We also offer optional accessories such as side guards, anti‑static mats, and custom‑length extensions to tailor the conveyor to your specific workflow requirements.

Choosing the HTC HRT-90 means investing in a product that balances performance, safety, and cost‑effectiveness. The table’s design minimizes downtime, reduces labor costs associated with manual handling, and enhances overall productivity. With its easy‑to‑use folding mechanism and low maintenance needs, the HRT-90 delivers a high return on investment for businesses of all sizes.

Key Features

• Heavy‑duty steel frame with a white powder‑coat finish provides corrosion resistance and a clean, professional appearance.
• Seventeen precision ball bearing rollers deliver smooth, silent motion while supporting up to 500 lb of total load.
• Adjustable folding design collapses to a compact size for easy storage, transport, and space‑saving in crowded work areas.
• Generous 66‑inch by 24‑inch work surface accommodates a wide range of parts, tools, and assemblies for versatile use.
• Comprehensive HTC customer support and warranty ensure reliable service, parts availability, and peace of mind.

FAQ

What is the maximum weight each roller can support?

Each of the 17 ball bearing rollers on the HRT-90 is rated for a maximum individual load of 30 lb. When the load is evenly distributed across the rollers, the table can safely handle a total weight of up to 500 lb, making it suitable for both light‑weight components and heavier assemblies.

Can the conveyor be used on uneven floors?

The HRT-90 is designed with a sturdy steel frame that helps maintain stability on most standard industrial floors. For uneven surfaces, we recommend placing a level, anti‑vibration mat beneath the table to ensure even weight distribution and prevent wobbling during operation.

Is assembly required out of the box?

The unit arrives fully assembled with the rollers already mounted and the folding hinges pre‑installed. The only setup required is to verify that the lock pins are engaged in the desired position and to place the table on a flat surface. No additional tools or batteries are needed.

How does the folding mechanism lock in place?

The folding mechanism utilizes reinforced lock‑pins that click securely into place when the table is fully opened or closed. These pins prevent accidental movement and ensure the frame remains rigid during use. To release the table, simply depress the pin and lift the hinge to the opposite position.

What maintenance is recommended for the rollers?

To keep the ball bearing rollers operating smoothly, it is advisable to clean them regularly with a dry cloth to remove dust and debris. Periodic lubrication with a light machine oil can extend bearing life, especially in dusty or high‑humidity environments. Inspect the rollers for wear every six months and replace any that show signs of damage.
